오락
Moog는 전 세계 테마파크의 4D Theatre와 Dark Rides에 설치된 시뮬레이션 모션 베이스와 솔루션을 제공합니다. 탁월한 기성품 및 맞춤형 모션 솔루션을 개발하는 Moog는 향후 몇 년 동안 글로벌 지원을 포함한 모든 중요 구성 요소의 엔지니어링, 설계 및 제조를 총괄합니다. 현재 현장에 있는 600개 이상의 고성능 인간 등급 시스템을 통해 높은 신뢰성을 보장합니다.
MB-E-6DOF/12/500KG
MB-E-6DOF/12/1500KG

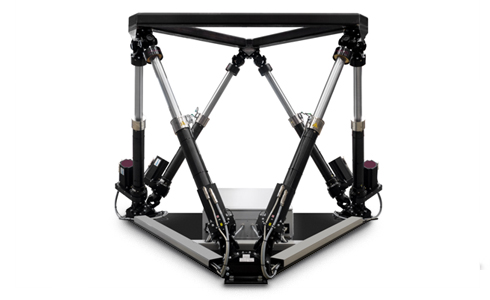

6DOF/26/1800KG
6DOF/10/3000KG
MB-EP-6DOF/26/3000KG
| PAYLOAD WEIGHT 500 kg / 1,102 lb | ||
|---|---|---|
| Heave (max): ±0.19 m (±7.5 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Sway | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Heave | ±8.0 m/s², ±8.2 g | ±0.50 m/s (±19.7 in/s) |
| Roll | ±300°/s² | ±40.0°/s |
| Pitch | ±300°/s² | ±50.0°/s |
| Yaw | ±500°/s² | ±50.0°/s |
| PAYLOAD WEIGHT 1,500 kg / 3,307 lb | ||
|---|---|---|
| Heave (max): ±0.19 m (±7.5 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Sway | ±6.0 m/s² (±0.61 g) | ±0.60 m/s (±23.6 in/s) |
| Heave | ±8.0 m/s² (±0.82 g) | ±0.50 m/s (±19.7 in/s) |
| Roll | ±300°/s² | ±40.0°/s |
| Pitch | ±300°/s² | ±50.0°/s |
| Yaw | ±500°/s² | ±50.0°/s |
| PAYLOAD WEIGHT 1,800 kg / 3,968 lb | ||
|---|---|---|
| Stroke: 0.63 m (24.8 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | 7.0 m/s² (0.7 g) | 0.80 m/s (31.4 in/s) |
| Sway | 7.0 m/s² (0.7 g) | 0.80 m/s (31.4 in/s) |
| Heave | 10.0 m/s² (1.0 g) | 0.60 m/s (23.6 in/s) |
| Roll | 250°/s² | ± 35.0°/s |
| Pitch | 250°/s² | ± 35.0°/s |
| Yaw | 500°/s² | ± 40.0°/s |
| PAYLOAD WEIGHT 3,091 kg / 6,614 lb | ||
|---|---|---|
| Stroke: 0.254 m (10.0 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±3.0 m/s² (0.3 g) | ±0.30 m/s (11.8 in/s) |
| Sway | ±3.0 m/s² (0.3 g) | ±0.30 m/s (11.8 in/s) |
| Heave | ±3.0 m/s² (0.3 g) | ±0.30 m/s (11.8 in/s) |
| Roll | ±300°/s² | ± 30.0°/s |
| Pitch | ±300°/s² | ± 30.0°/s |
| Yaw | ±300°/s² | ± 30.0°/s |
| PAYLOAD WEIGHT 3,000 kg / 6,613 lb | ||
|---|---|---|
| Heave (max): ±0.41 m (±16.1 in) | Degrees of Freedom: Six | |
| Specifications | Acceleration | Velocity |
| Surge | ±6.3 m/s² (0.63 g) | ±0.80 m/s (31.4 in/s) |
| Sway | ±6.3 m/s² (0.63 g) | ±0.80 m/s (31.4 in/s) |
| Heave | ±9.0 m/s² (0.90 g) | ±0.60 m/s (23.6 in/s) |
| Roll | ±200°/s² | ±35.0°/s |
| Pitch | ±200°/s² | ±35.0°/s |
| Yaw | ±400°/s² | ±40.0°/s |
